2 Points Non-invasive Ultrasonic Level Switch

2 Points Non-invasive Ultrasonic Level Switch is a storage tank level monitoring and alarm device. It has 2 point monitoring function, so it is mainly used for high and low liquid level monitoring of storage tanks.

  • Non-Invasive level measurement with safety

  • 2 points measuring, high and low liquid level monitoring

  • Easily installation, Do not open the tank, the installation process is safe.

  • Maintenance free.

Send My Inquiry Now
  • Non-invasive Ultrasonic Level Switch

Reliable industrial tank level detection measurement – 2 Points Non-invasive Ultrasonic Level Switch

It can be used in horizontal and vertical tanks, as well as other special-shaped tanks, and pipelines.

  • You don’t have to drill, you don’t have to empty tanks.
  • Just stick the probe on the outside of the tank.
  • Relay output liquid level detection signal.
  • It can be used in the storage tank of high pressure toxic liquid.

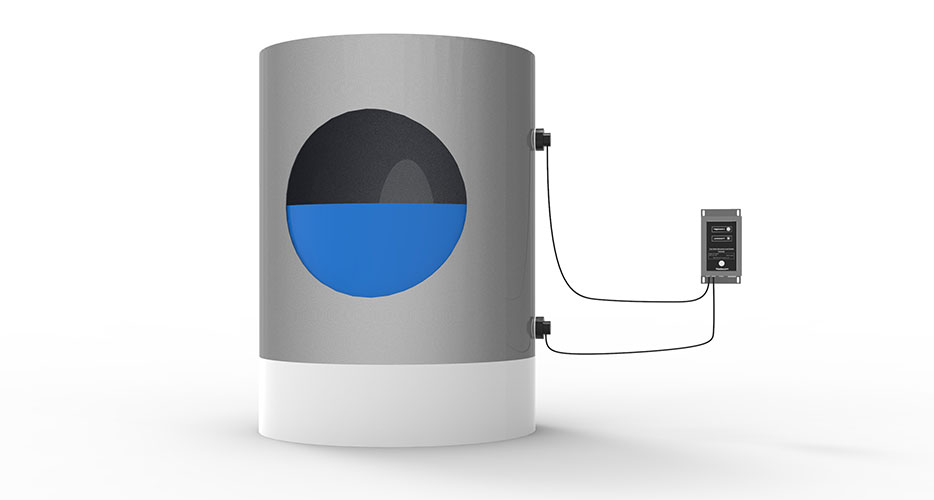

It is a liquid Level Switch that can simultaneously detect 2 Points

It monitors the liquid level of the storage tank in real time, and when the liquid level exceeds the high and low liquid level range, it will sound an alarm to remind the user.

The Non-invasive Ultrasonic Level Switch is a new type of liquid level monitoring and alarming device. It is mainly used to monitor the liquid level of the storage tank, realize the upper and lower limit alarm or monitor whether there is a medium in the pipeline. It can be applied to the liquid level process control of medicine, petroleum, chemical industry, power, food, and other industries.

The sonar pulse generated by the sensor (probe) of the Non-invasive Ultrasonic Level Switch can pass through the container wall. This pulse will propagate in the container wall and liquid and will be reflected back. Through the detection and calculation of this reflection characteristic, we can judge whether there is liquid in the container at the monitoring point. At the same time, the Non-Invasive level switch can output relay signals to the later stage electrical appliances or other equipment, so as to realize the monitoring or control of liquid level.

Non-invasive Ultrasonic Level Switch

Application areas of  Points Non-invasive Ultrasonic Level Switch

2 Points Non-invasive Ultrasonic Level Switch is particularly suitable for non-contact and precise monitoring of Various Toxic, Strong Acid, Strong Alkali, and liquid levels inside sealed containers. The instrument adopts explosion-proof design and can be applied in situations where explosion-proof is required. For example, in the Pharmaceutical Manufacturing Industry, the liquid level control of reaction liquids in pipelines and storage tanks, in the petrochemical industry, the liquid level control of oil pipelines and storage tanks, and in the Food Industry, the liquid level detection and monitoring engineering projects of storage tanks and pipelines for brewing, beverage, milk production, etc.

How to install 2 Points Non-invasive Ultrasonic Level Switch

It takes only 4 steps to install and use the Non-invasive Ultrasonic Level Switch

  • Step 1: Find a suitable installation position
  • Step 2: Install sensor
  • Step 3: Set the parameters
  • Step 4: Power on and complete installation

Technical Specifications

Technical specifications
Power DC 24V
Detect Point 2 Point or 1 Point
Signal Output Relay Output, RS485
Relay capacity (DC 30V 6A ) , ( AC 250V 6A)
Repeatability error 土5mm
Container Wall Thickness Max 30mm
Container Material Steel, stainless steel, glass, non-foaming plastic, and other dense materials
Measurable medium Pure liquid, emulsion liquid, suspension liquid
Ambient temperature -20℃~+70℃
Transmitter Material Cast Aluminum or PVC/ABS
Protection Rating IP67/IP68
Explosion-proof sign Exd II CT6
